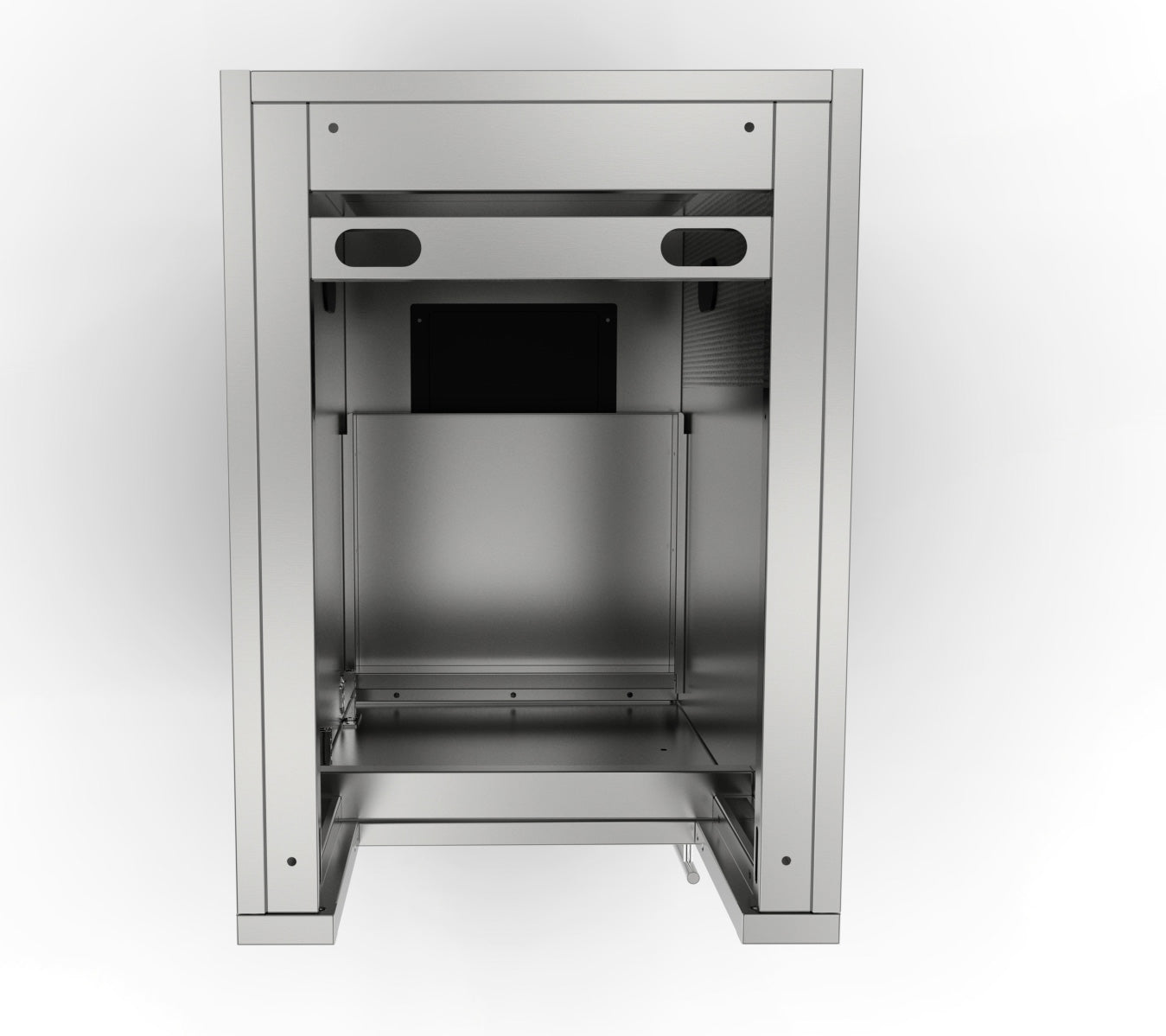

The 20 In. Sunstone Appliance Base Cabinet is uniquely designed to receive multiple types of either Double Slide-In Side Burners or Bar Stations of many industry brand models right out of the box with easy installation. The cabinet comes standard with a Left-Swing Side Door Enclosure for a Trash Bin or Propane Tank Storage. There is a Bottom Utility Access Port as well, located behind the bottom a Slide Out Tray. The cabinet comes Fully Assembled, only requiring to fasten on the four included Peg-Legs, screw in place each 304 SS Rod Handles, and mount the Front and Back Kick-Plates. This Cabinet makes use of a “TRIM-KIT” that is installed on the front face of the cabinet, which adapts the cabinet to fit your preferred appliance, and is compatible with “CUT-OUT” Sizes between 9-3/4 In. to 14-1/2 In. Width by 8 In. to 10-1/4 In. Height with a counter at 3/4" Height with Filler Rail installed or removed. Additional Height can be adjusted by Removing Bottom Filler Rail or by adding a Thicker Counter or Backer Board. Please Specify the Correct “TRIM-KIT” to be included with the cabinet to fit your product, if your Side Burner or Bar Station is any of our models we will automatically include the correct Trim-Kit. Please refer to the Cabinets Specification Sheet for more information, see the second page showing the various insert sleeve dimensions this refers to your products “Cut-Out” Dimension – match this up to the correct “Trim-Kit” and specify this piece on your order.
- Lifetime Structure Warranty
- 304 Stainless Steel Structure
- 304 SS Rod Handles
- Front Vented Kick-Plate
- Rear Solid Kick-Plate
- Replaceable Face Panel
- Easy Pin-Lock Installation
- Removable Counter Rail

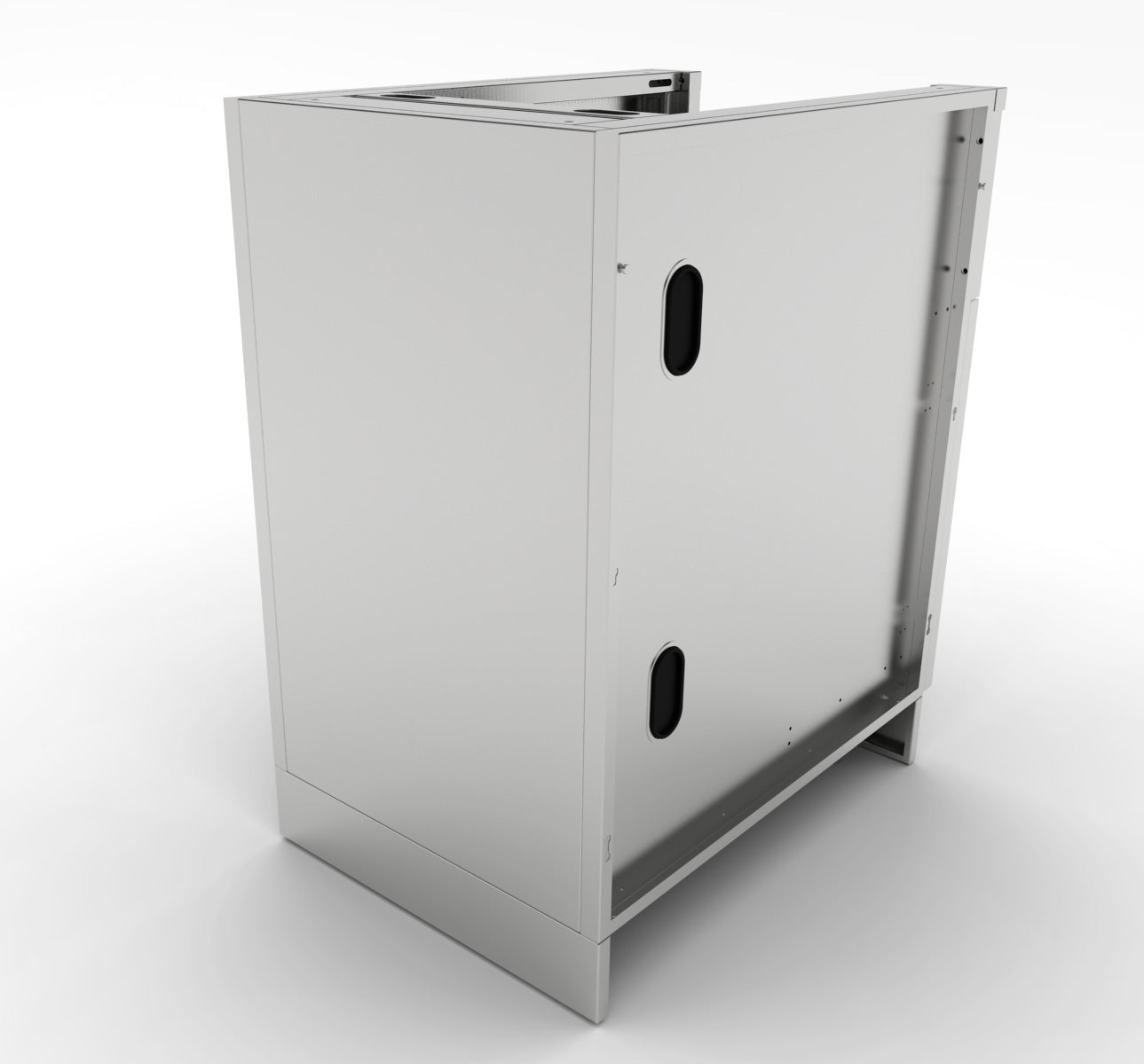

- Covered Side Wall Access Ports
- 4 Adjustable Peg-Legs
- Optional Wheel Casters

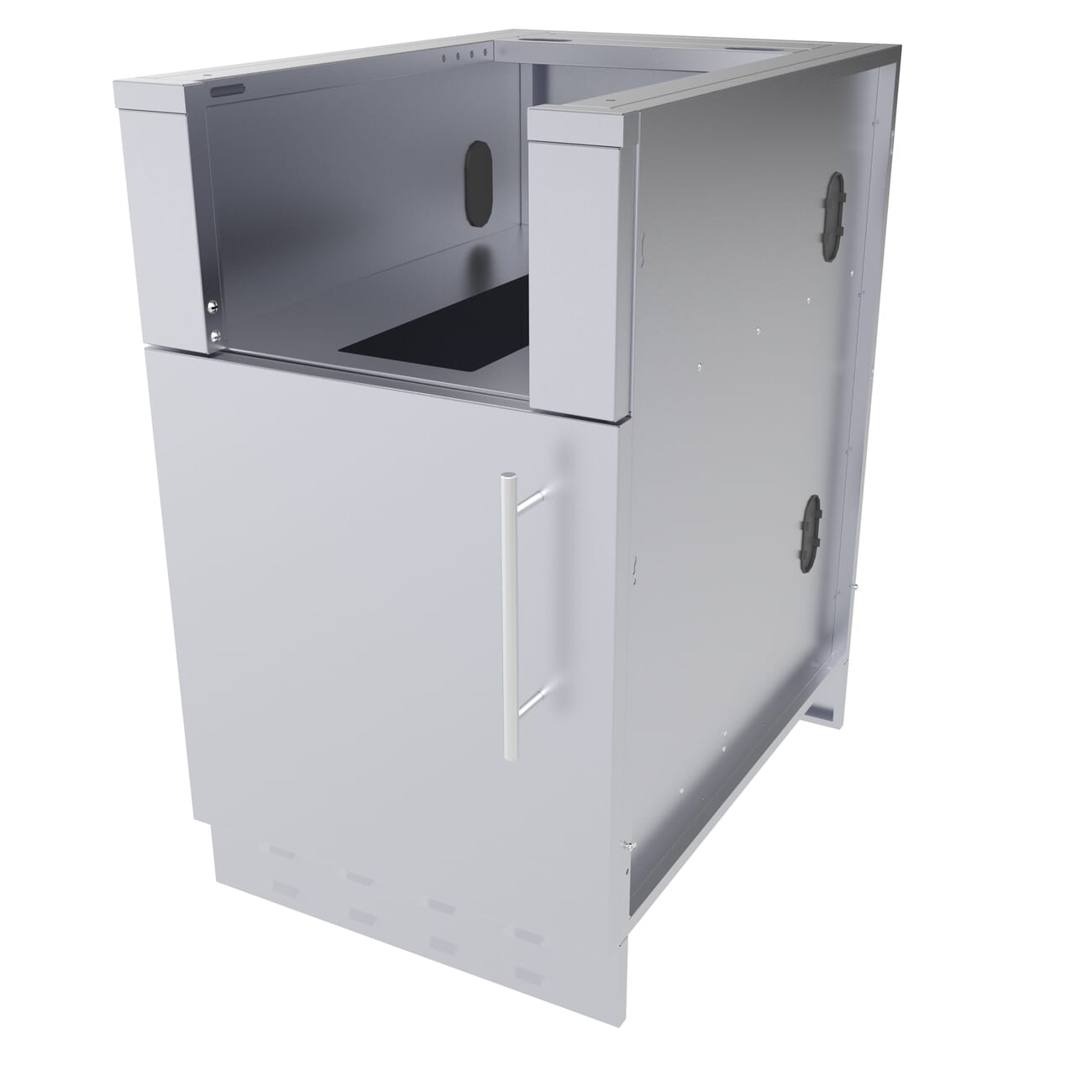

20" Appliance Cabinet w/ Left Swing Door
20" W x 28-1/4" D x 34-1/2" H (w/ Legs)
20" W x 28-1/4" D x 30-1/2" H (without Legs)
Up to 36" Max Adjustable Height
Net Weight 71.5 LBS
23" W x 31" L x 33" H (Package Size)
Insertable Products

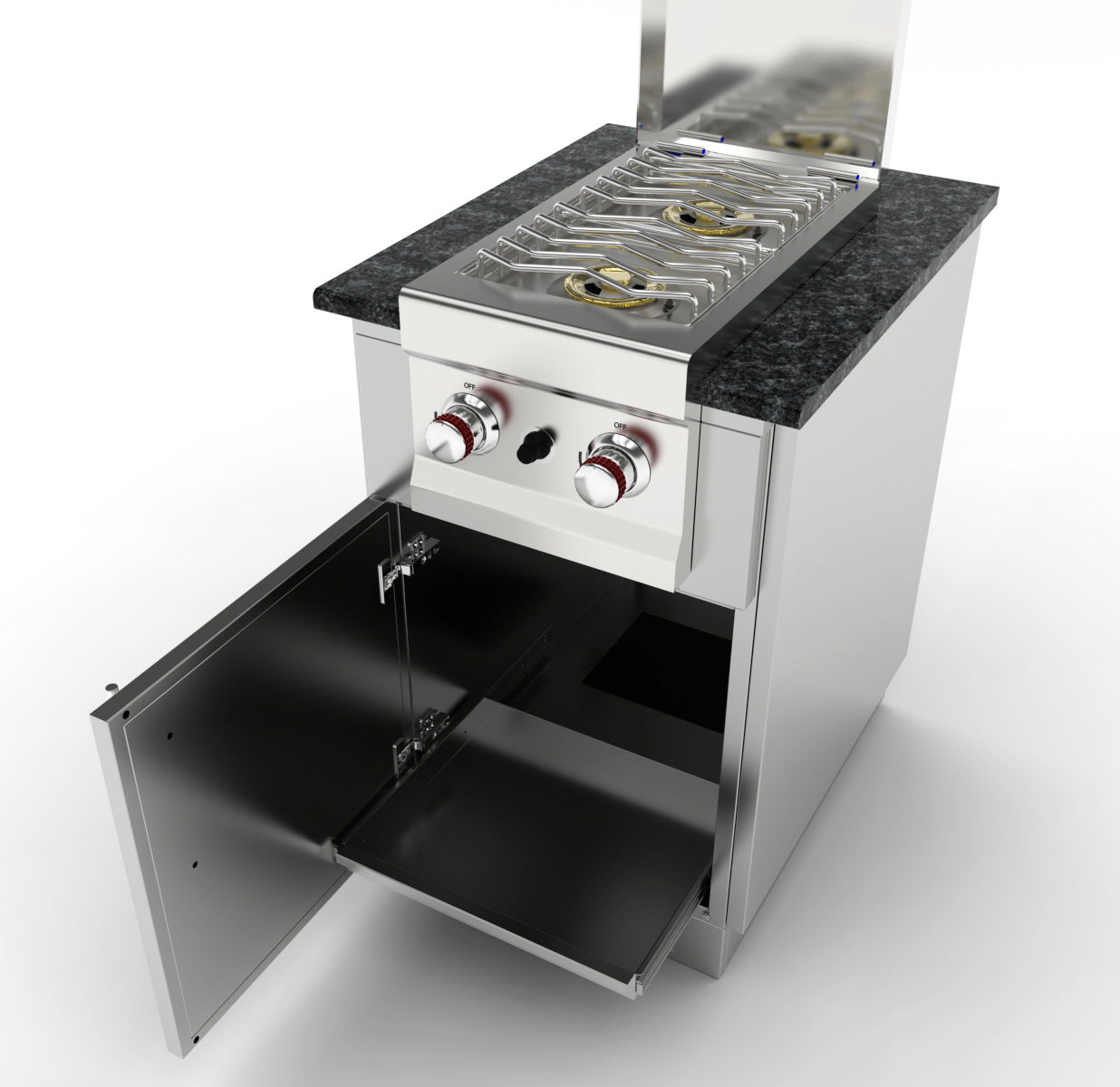

Double Side Burner (TOKG-2CSB)
Cocktail Pro (TOKG-B-CS14)
Material Specifications
304 Stainless Steel entire structure, 18 Gauge for Door Panel, 18 Gauge for Cabinet Box, 18 Gauge for Shelf, Handles are made of Solid 304 Stainless Steel Bar
